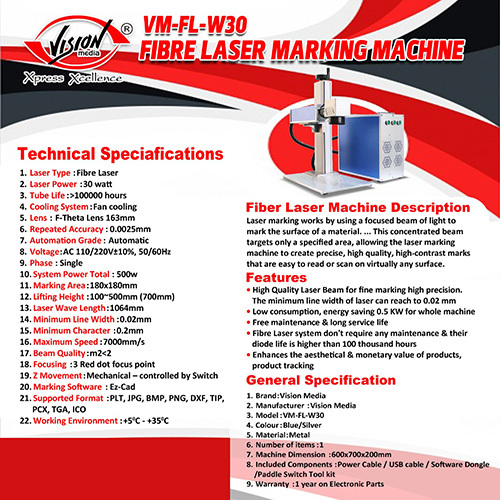

Product Description

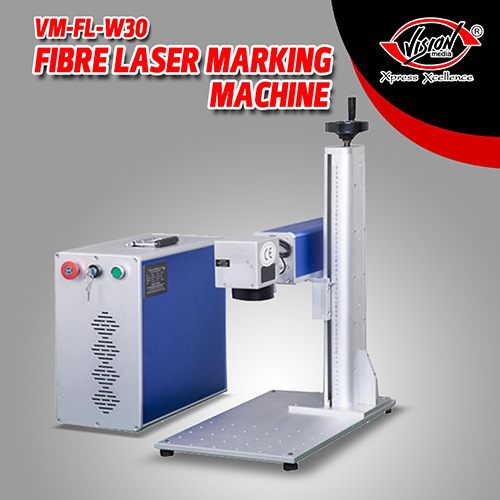

Metal Marking Machine

Phase : Single Phase
Model Name/Number  : VM-FL-W30
Usage/Application : Metal Marking
Laser Type : Fiber Laser
Maximum Speed : 7000mm/s
Marking Area : 180 x 180 mm (W x L)
Laser Wave Length : 1064 mm
Voltage : 220V
Laser Power : 30W
Automation Grade : Automatic
Brand : Vision Media
Size : 600 x 200 x 700L mm (H x W x L)
Material : Metal
Beam Quality : m2 <2
Ambient Temperature : 15 Degree C - 35 Degree C
Repeated Accuracy : 0.0025 mm
Marking Software : EZ-Cad
Supported File Formats : PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF
Cooling Method : Air Cooling
Modes Of Operation : Automatic
System Power Total : 500W

Features :-
High Quality Laser Beam for fine marking high precision.The minimum line width of laser can reach to 0.02 mm
Low consumption, energy saving 0.5 KW for whole machine
Free maintenance & long service life
Fibre Laser system don't require any maintenance & their diode life is higher than 100 thousand hours
Enhances the aesthetical & monetary value of products, product tracking

Application :-
Marking on electronic components
Button
Cover
Jewelleries
Molds, etc
